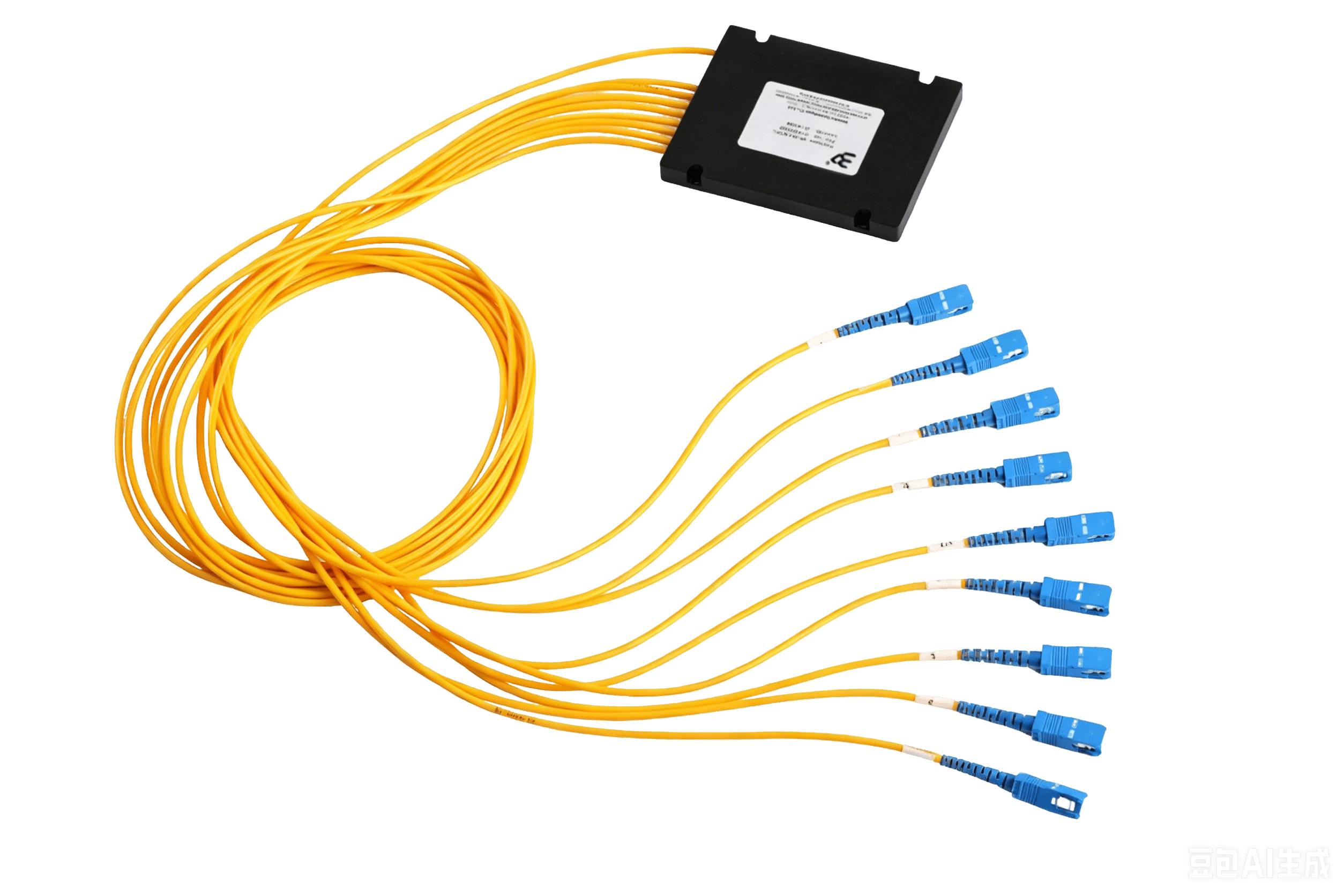

Box Type PLC Splitter
The planar lightwave circuit (PLC) splitter is an integrated waveguide optical power distribution device based on a quartz substrate. It features a compact size, wide operating wavelength range, high reliability, and excellent uniformity in light splitting. It is particularly suitable for use in passive optical networks (EPON, BPON, GPON, etc.) to connect central office and terminal equipment and achieve optical signal splitting. EverProX offers a full range of 1×N and 2×N products and can customize optical splitters for various application scenarios.
邮箱：sales-inquiry@everprox.com
电话：+86 0573 82585881
产品优势
- Superior signal splitting uniformity & low optical loss
- Wide wavelength broadband compatibility
- Durable sealed ABS box for full environmental protection
- Compact size & flexible easy installation
- Strong temperature stability & long service lifespan
- Diversified split ratios & universal interface compatibility
产品规格

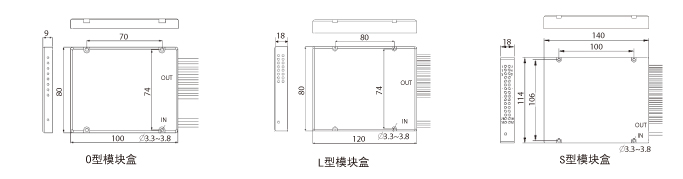

Outline structure diagram
Outline dimensions (mm)
| 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 | 1×64 | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 型号 | O型 | L型 | S型 | O型 | L型 | S型 | ||||||||||
| 长 | 100 | 120 | 140 | 100 | 120 | 140 | ||||||||||
| 宽 | 80 | 80 | 114 | 80 | 80 | 114 | ||||||||||
| 高 | 9 | 18 | 18 | 9 | 18 | 18 | ||||||||||
| 定位孔 (长×宽) |
70×74 | 80×74 | 100×106 | 70×74 | 80×74 | 100×106 | ||||||||||

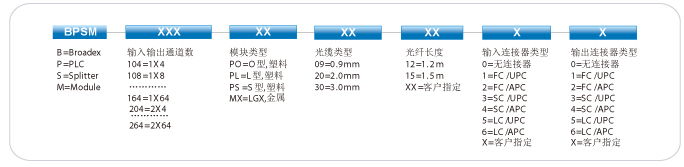

Ordering information
